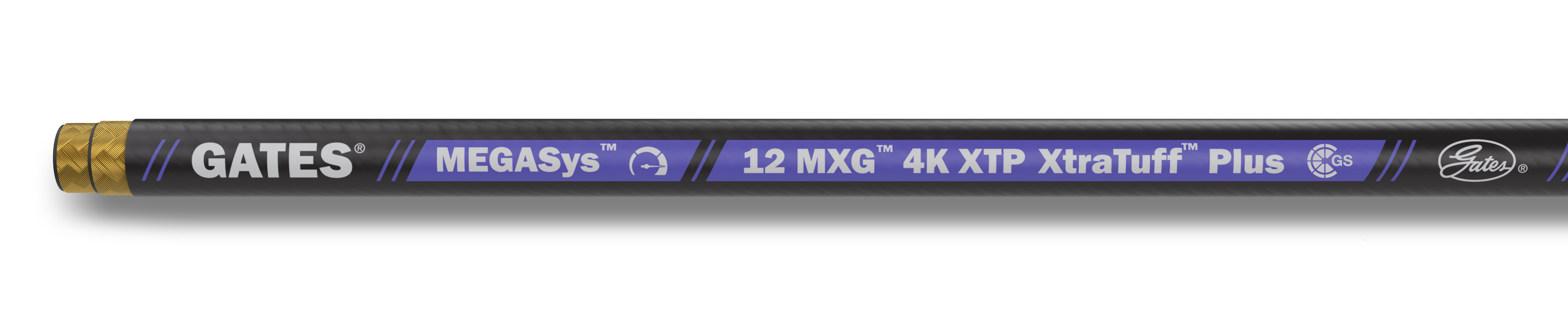

    Built with our proprietary wire-braid process technology, MegaSys MXG 4K hose is lightweight, highly flexible, and qualified to ONE MILLION impulse cycles — it’s a drop-in replacement for conventional spiral hoses.

    Using materials science advancements, design expertise and processing technologies, we engineered a hydraulic hose that exceeds the performance of wire spiral constructions, but with the lower weight and flexibility driven by Gates wire-braid technology.



    The XtraTuff Plus cover on MXG 4K hose offers 25X the abrasion resistance of standard covers, as well as impressive ozone resistance.



    Introducing MEGASYS MXG 4K

    High-Pressure Performance Redefined

    It's time to rethink your spiral hydraulic hose.

    FEATURES & BENEFITS

    • Proprietary application of materials science and processing technology
    • Exceeds performance criteria of ISO 18752 280DC, SAE 100R12, EN856 R12, and ISO 3862 R12; size -16 also rated for EN856 4SP
    • For inventory consolidation, also exceeds SAE 100R19
    • 1,000,000 cycle impulse life exceeds industry standards (2X spiral and 5X wire braid standards) with GS couplings
    • Impulse tested to the same parameters as Gates EFG4K spiral hose (pressure, temperature and bend radius)
    • Compact construction with excellent flexibility and lower force-to-bend for faster and more ergonomic installation (force-to-bend is 40% better and OD is 8% smaller)
    • 30% lighter weight for easier handling and installation
    • Gates XtraTuffPlus cover comes standard on MXG, providing abrasion and ozone resistance
    • Utilizes Gates GS GlobalSpiral couplings; sizes 6-12 have alternative performance ratings with MegaCrimpG couplings; compatible with Gates Crimpers





    WE'VE GOT YOU COVERED

    MXG4K comes with Gates XtraTuff Plus, our latest material breakthrough, engineered for exceptional durability to cover your assets in the most demanding fluid power applications.



    • 25X more abrasion resistant
    • Enhanced ozone resistance
    • No impact to flexibility
    • Exceptional durability
    • MSHA certified
